Allen-Bradley 1492-A1B1H MCB Fuse Holder UL508 Bus Bar
Description1492 SP Series - AccessoriesProfessional range of Allen Bradley general purpose MCBs accessories from the 1492 series. Accessories include auxiliary contacts, single phase busbars, busbar end caps, protective shrouds, shunt trips and terminal power feeds. All accessories are highly reliable and excellent quality.Allen Bradley Bulletin Single Phase Bus Bar, 27mm...
Description
1492 SP Series - Accessories
Professional range of Allen Bradley general purpose MCBs accessories from the 1492 series. Accessories include auxiliary contacts, single phase busbars, busbar end caps, protective shrouds, shunt trips and terminal power feeds. All accessories are highly reliable and excellent quality.

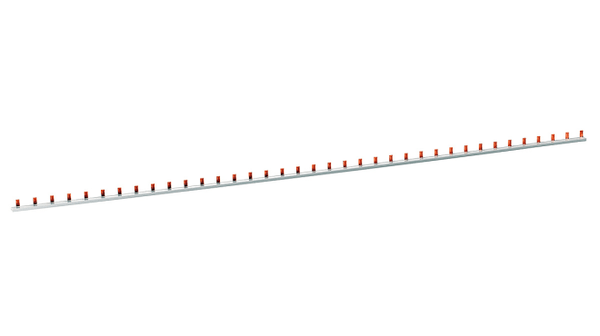

Allen Bradley Bulletin Single Phase Bus Bar, 27mm Pitch, 100A - 1492-A1B1H
Power the circuit breakers in your electrical system with this AC (alternative current) bus bar from Rockwell Automation's Allen Bradley range. It has a length of 1 metre and a connector pitch of 27mm, so there's enough room to space your circuit breakers safely. The unit has a rated operational voltage of 480V AC, which makes it a good choice for low-voltage applications. As it can power as many as 36 devices, you can use it for complex commercial, industrial and domestic circuits.
• Copper material for good conductivity and a reliable connection
• Won't burn in the event of a fire, making it safe for use in demanding environments
• Current rating of 100A for large-scale single-phase application
• Won't burn in the event of a fire, making it safe for use in demanding environments
• Current rating of 100A for large-scale single-phase application
Standards and Certifications
• RoHS (Restriction of Hazardous Substances)
• UL (Underwriters' Laboratory)
• CSA (Canadian Standards Association)
• UL (Underwriters' Laboratory)
• CSA (Canadian Standards Association)
How does this bus bar work?
A bus bar collects electrical energy from a power source. This energises it, so devices can connect to any point on its busway. It serves as a power extension component, making it easy for different devices to share energy from the same source.
Allen Bradley MCBs
Specifications
| Attribute | Value |
| Rated Operational Voltage | 480 (1492-SP) V ac, 600 (1492-FB) V ac |
| Range | Bulletin |
| Material | Copper |
| Electrical Phase | 1 |
| Current Rating | 100A |
| Pitch | 27mm |
| Series | 1492 |
| For Use With | 1492-FB |
