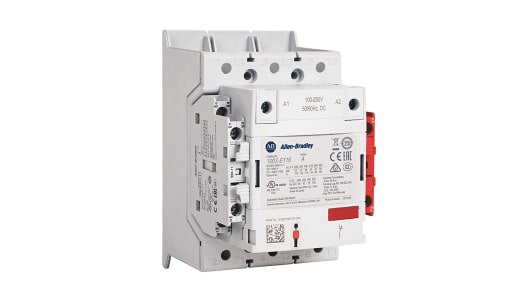

Allen Bradley 100S-E Contactor, 100 ? 250 V ac/dc Coil, 3 Pole, 116 A, 1NO + 1NC
Description100S-E MCS-E Safety Contactor, 116A, AC3 duty, 100-250V 50/60Hz / 100-250V DC Electronic Coil, 1 N.O. 1 N.C. Standard & 0 N.O. 1 N.C. Lower Power Auxiliary ContactsSpecifications Attribute Value Coil Voltage 100 ? 250 V ac/dc Number of Poles 3 Contact Current Rating 116 A Normal State Configuration 1NO...
Description
100S-E MCS-E Safety Contactor, 116A, AC3 duty, 100-250V 50/60Hz / 100-250V DC Electronic Coil, 1 N.O. 1 N.C. Standard & 0 N.O. 1 N.C. Lower Power Auxiliary Contacts
Specifications
| Attribute | Value |
| Coil Voltage | 100 ? 250 V ac/dc |
| Number of Poles | 3 |
| Contact Current Rating | 116 A |
| Normal State Configuration | 1NO + 1NC |
| Contact Voltage Rating | 250 V ac/dc |
| Series | 100S-E |
| Number Of Auxiliary Contacts | 1 |
| Function | Safety |
| Auxiliary Contact Configuration | 1NC |
| Terminal Type | Screw |
| Width | 126mm |
| Depth | 150mm |
| Length | 90mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
