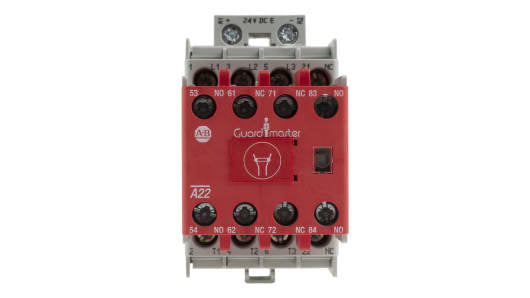

Allen Bradley 100S-C Contactor, 24 V dc Coil, 3 Pole, 12 A, 2NO + 3NC

  • ₦0.00
  • Allen Bradley 100S-C Contactor, 24 V dc Coil, 3 Pole, 12 A, 2NO + 3NCDescriptionAllen Bradley Safety ContactorThis safety contactor from Rockwell Automation's Allen Bradley range provides sustainable protection to high current-carrying devices. Its reliable technology is ideally suited to any device that's frequently turned on and off, such as...



    Add to quote

    Allen Bradley 100S-C Contactor, 24 V dc Coil, 3 Pole, 12 A, 2NO + 3NC

    Description

    Allen Bradley Safety Contactor


    This safety contactor from Rockwell Automation's Allen Bradley range provides sustainable protection to high current-carrying devices. Its reliable technology is ideally suited to any device that's frequently turned on and off, such as a motor or a lighting circuit. The unit features a protective cover to prevent unauthorised access, and its window ensures good visibility of the contactor's working status. Gold-plated, bifurcated auxiliary contacts have high sensitivity for precise and fast response times. A red housing makes this unit simple to identify as a safety device.

    Features and Benefits


    • Suitable for direct mounting into the contactor to save panel space
    • Compact design with dimensions of 81 (length) x 45 (width) x 125.5 mm (depth)
    • Wide operating temperature range of -25°C to +60°C for use in demanding environments

    Standards and Certifications


    • CE (Conformité Européene)
    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Association)
    • RINA (Registro Italiano Navale)
    • IEC 60947 (International Electrotechnical Commission)
    • EN 60947 (European Norm)

    How does a safety contactor work?


    CE certified
    UL listed
    CSA certified
    RINA certified
    IEC60947
    EN60947

    A safety contactor incorporates spring-loaded contacts that make or break power supply lines to a load. These contacts are designed to open and close rapidly to assist with arc suppression, ensuring the contactor's ability to interrupt heavy motor currents with minimal damage over a long life cycle.

    Specifications

    Attribute Value
    Coil Voltage 24 V dc
    Number of Poles 3
    Contact Current Rating 12 A
    Normal State Configuration 2NO + 3NC
    Contact Voltage Rating 690 V ac
    Series 100S-C
    Number Of Auxiliary Contacts 5
    Function Safety
    Auxiliary Contact Configuration 2NO + 3NC
    Width 45mm
    Depth 125.5mm
    Pole and Throw Configuration 3P
    Minimum Operating Temperature -25°C
    Maximum Operating Temperature +60°C
    Length 81mm
