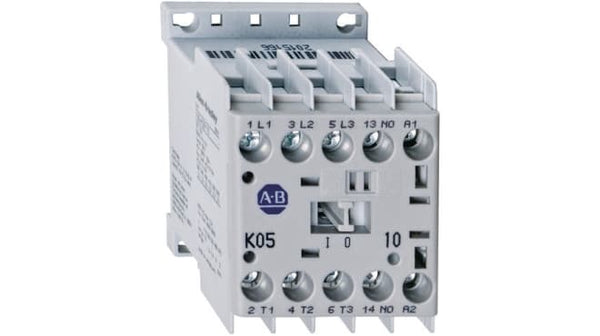

Allen Bradley 100 Series 100K Contactor, 110 V ac Coil, 3 Pole, 12 A, 5.5 kW, 3NO

  • ₦0.00
  • DescriptionAllen Bradley 100-K Miniature ContactorsThe Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe,...



    Add to quote

    Description

    Allen Bradley 100-K Miniature Contactors


    The Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe, and efficient switching capabilities for your motor control system, giving you maximum performance in a small package.

    These miniature units have less panel depth requirements and are shallower than standard IEC contactors. They are available with several contact ratings and AC or DC operating coils. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately. These cost-saving contactors are rated up to 690V and have 3 Poles plus 1 Auxiliary contact. The dimensions are: (H) 50 x (W) 45 x (D) 53mm.

    These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds.

    Features and Benefits:


    • Compact size, allowing broader application use
    • Choice of full-voltage non-reversing and reversing contactors
    • AC and DC have the same dimensions
    • IP2X Finger Protection for improved safety
    • Optional integrated surge suppressor
    • Fully compatible with Bulletin 193-K bimetallic overload relay
    • Mechanically linked contacts to IEC 60947-5-1 on base unit
    • “Mirror contacts” to IEC 60947-4-1 throughout

    Certifications:


    CE Marked
    cULus Listed (File No. E41850, Guide NLDX, NLDX7)
    CCC
    Suitable for use with IE3 Motors (IEC 60034-30)


    Allen Bradley MCS (Modular Control System) Contactors:


    MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.


    MCS features:


    • A wide range of accessories available to cater for many diverse needs
    • The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
    • The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
    • A modular design concept and an easy to fit 'clip-in' method
    • Simple and fast DIN Rail and Surface Mounting

    Specifications

    Attribute Value
    Coil Voltage 110 V ac
    Number of Poles 3
    Contact Current Rating 12 A
    Power Rating 5.5 kW
    Normal State Configuration 3NO
    Contact Voltage Rating 690 V ac
    Range 100 Series
    Series 100K
    Number Of Auxiliary Contacts 1
    Terminal Type Screw
    Width 44.9mm
    Depth 82.7mm
    Maximum Operating Temperature +60°C
    Minimum Operating Temperature -25°C
    Length 108.2mm
