Allen Bradley 100 Series 100K Contactor, 24 V dc Coil, 3 Pole, 9 A, 4 kW, 3NO
DescriptionAllen Bradley 100-K Miniature ContactorsThe Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe,...
Description
Allen Bradley 100-K Miniature Contactors
The Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe, and efficient switching capabilities for your motor control system, giving you maximum performance in a small package.
These miniature units have less panel depth requirements and are shallower than standard IEC contactors. They are available with several contact ratings and AC or DC operating coils. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately. These cost-saving contactors are rated up to 690V and have 3 Poles plus 1 Auxiliary contact. The dimensions are: (H) 50 x (W) 45 x (D) 53mm.
These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds.
Features and Benefits:
• Compact size, allowing broader application use
• Choice of full-voltage non-reversing and reversing contactors
• AC and DC have the same dimensions
• IP2X Finger Protection for improved safety
• Optional integrated surge suppressor
• Fully compatible with Bulletin 193-K bimetallic overload relay
• Mechanically linked contacts to IEC 60947-5-1 on base unit
• “Mirror contacts” to IEC 60947-4-1 throughout
• Choice of full-voltage non-reversing and reversing contactors
• AC and DC have the same dimensions
• IP2X Finger Protection for improved safety
• Optional integrated surge suppressor
• Fully compatible with Bulletin 193-K bimetallic overload relay
• Mechanically linked contacts to IEC 60947-5-1 on base unit
• “Mirror contacts” to IEC 60947-4-1 throughout
Certifications:
CE Marked
cULus Listed (File No. E41850, Guide NLDX, NLDX7)
CCC
Suitable for use with IE3 Motors (IEC 60034-30)
cULus Listed (File No. E41850, Guide NLDX, NLDX7)
CCC
Suitable for use with IE3 Motors (IEC 60034-30)

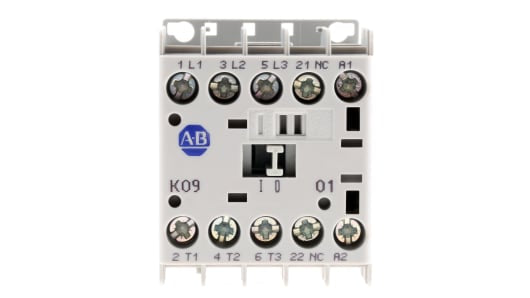

Allen Bradley 3-Pole Miniature Motor Control Contactor, 24V DC Coil, 4kW - 100-K09ZJ01
This motor contactor is part of Rockwell Automation's Allen Bradley range of MCS (modular control system) units. It has a contact current rating of 9A and a voltage rating of 690V, so it's ideal for use with heavy-duty electronic motors. The unit's compact size and screw-terminal fitting allow for easy installation in smaller systems. This device can be remotely controlled and used in multiple motor circuits at once for reliable and efficient switching. It's designed for commercial and industrial applications.
How do contactors work?
• Compact dimensions of 108.2 (length) x 44.9 (width) x 82.7mm (depth) to take up minimal space• NO (normally open) configuration to safely stop current flow when the switch is off• Includes mirror contacts, preventing status effects of NO pole welds• Operating temperature range of -25°C to +60°C for use in demanding environments
Standards and Certifications
• CE (Conformité Européenne)• CCC (Chinese Standards)• UL (Underwriters' Laboratories)• CSA (Canadian Standards Association)• IEC 60034-30 (International Electrotechnical Commission)
What's the difference between a contactor and a relay?
The key difference between contactors and relays is the voltage current they can handle. Contactors are designed for large industrial applications with high current ratings, whereas relays are useful in smaller circuits. Many commercial systems favour contactors to ensure safety and efficiency.
Allen Bradley MCS (Modular Control System) Contactors:
MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.
MCS features:
• A wide range of accessories available to cater for many diverse needs
• The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
• The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
• A modular design concept and an easy to fit 'clip-in' method
• Simple and fast DIN Rail and Surface Mounting
• The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
• The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
• A modular design concept and an easy to fit 'clip-in' method
• Simple and fast DIN Rail and Surface Mounting
Specifications
| Attribute | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 9 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | 100K |
| Range | 100 Series |
| Number Of Auxiliary Contacts | 1 |
| Function | Motor Control |
| Terminal Type | Screw |
| Width | 44.9mm |
| Depth | 82.7mm |
| Length | 108.2mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
