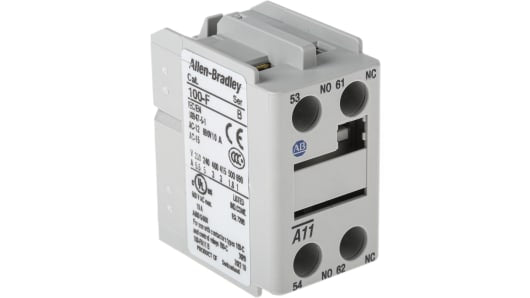

Allen Bradley Auxiliary Contact - 1NC + 1NO, 2 Contact, Front Mount, 10 A
DescriptionMCS Auxiliary Contact Modules10A rated (AC1)Blocks per contactor 2 side + 1 top (max. 8 contacts)Min. switching 17V 5mA (DIN 19240)Allen Bradley Auxiliary Contact, NO/NC, DPST - 100-FA11Use this auxiliary contact from Rockwell Automation's Allen Bradley range to improve the safety and reliability of your industrial relays. It's designed for...
Description
MCS Auxiliary Contact Modules
10A rated (AC1)
Blocks per contactor 2 side + 1 top (max. 8 contacts)
Min. switching 17V 5mA (DIN 19240)
Blocks per contactor 2 side + 1 top (max. 8 contacts)
Min. switching 17V 5mA (DIN 19240)
Allen Bradley Auxiliary Contact, NO/NC, DPST - 100-FA11
Use this auxiliary contact from Rockwell Automation's Allen Bradley range to improve the safety and reliability of your industrial relays. It's designed for use with primary switching components and is commonly used to activate or deactivate devices such as pushbuttons in manufacturing and industrial applications. This component features an early-make and late-break configuration to ensure that the normally open (NO) contact doesn't open or close at the same time as the normally closed (NC) one. This prevents short circuits and improves the electrical safety of your devices.
• Simple plug-and-play front mounting system saves time and effort during installation• Contact current rating of 10A for use in low-voltage industrial applications• Double pole configuration to control two circuits for reduced wiring and space efficiency• Screw terminals ensure a secure connection that won't come loose, even in the event of heavy vibrations
Standards and Certifications
• CE (Conformité Européenne)• RoHS (Restriction of Hazardous Substances)• CCC (China Compulsory Certificate)
How do I maintain this contact?
To maintain this component, it's important to regularly check its contact points for cable burns as these may affect performance over time.
Specifications
| Attribute | Value |
| Number of Contacts | 2 |
| Normal State Configuration | 1NC + 1NO |
| Mounting Style | Front Mount |
| Series | 100F |
| Contact Current Rating | 10 A |
| Terminal Type | Screw |
| Pole and Throw Configuration | DPST |
| Operating Temperature Range | -25 ? +60 °C |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
