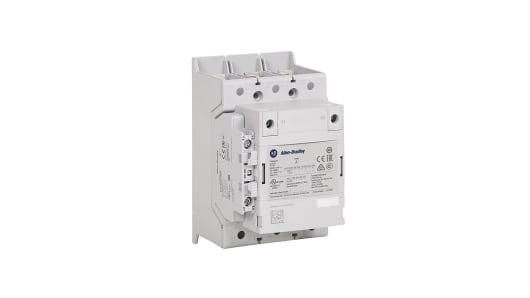

Allen Bradley 100-E Contactor, 100 ? 250 V dc Coil, 3 Pole, 146 A, 75 kW, 1NO + 1NC
Description100-E MCS-E Contactor ,146A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil , 1 N.O. 1 N.C.Specifications Attribute Value Coil Voltage 100 ? 250 V dc Number of Poles 3 Contact Current Rating 146 A Power Rating 75 kW Normal State Configuration 1NO + 1NC Contact Voltage Rating...
Description
100-E MCS-E Contactor ,146A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil , 1 N.O. 1 N.C.
Specifications
| Attribute | Value |
| Coil Voltage | 100 ? 250 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 146 A |
| Power Rating | 75 kW |
| Normal State Configuration | 1NO + 1NC |
| Contact Voltage Rating | 400 V ac |
| Series | 100-E |
| Number Of Auxiliary Contacts | 2 |
| Function | Direct on Line |
| Terminal Type | Bar Connections |
| Width | 126mm |
| Depth | 150mm |
| Length | 90mm |
| Minimum Operating Temperature | -40°C |
| Mounting Style | Panel Mount |
| Maximum Operating Temperature | +70°C |
