Allen Bradley 100-E Contactor, 100 ? 250 V dc Coil, 3 Pole, 146 A, 75 kW, 1NO + 1NC
Allen Bradley 100-E Contactor, 100 ? 250 V dc Coil, 3 Pole, 146 A, 75 kW, 1NO + 1NCDescriptionAllen Bradley Contactor, DOL, 2 Auxiliary Contacts - 100-E146ED11For reliable motor control in high-voltage applications, opt for this DOL contactor from Rockwell Automation's Allen Bradley range. It's specifically designed to turn a...
Allen Bradley 100-E Contactor, 100 ? 250 V dc Coil, 3 Pole, 146 A, 75 kW, 1NO + 1NC
Description

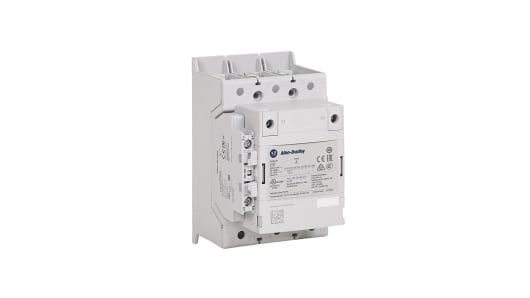

Allen Bradley Contactor, DOL, 2 Auxiliary Contacts - 100-E146ED11
For reliable motor control in high-voltage applications, opt for this DOL contactor from Rockwell Automation's Allen Bradley range. It's specifically designed to turn a motor on and off with rapidly switching contacts that help to prevent electrical arcs from causing damage to attached equipment. You can directly mount up to two auxiliary contacts onto this device, which saves you space in your control cabinet. This versatile contactor has a wide coil voltage range of 100 to 250V DC for wide compatibility with your systems.
• Operating temperature range of -40°C to +70°C for use in demanding conditions
• Includes a PLC interface for easy connection to a logic controller
• Space-saving dimensions of 90 (L) x 142.5 (W) x 150mm (D), so suitable for compact control panels
• Made from environmentally-friendly materials for a reduced carbon footprint
• Includes a PLC interface for easy connection to a logic controller
• Space-saving dimensions of 90 (L) x 142.5 (W) x 150mm (D), so suitable for compact control panels
• Made from environmentally-friendly materials for a reduced carbon footprint
Standards and Certifications
• IEC
• EN
• UL
• CCC
• EAC
• KC
• EN
• UL
• CCC
• EAC
• KC
100-E MCS-E Contactor ,146A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil w/ PLC Interface , 1 N.O. 1 N.C.
How does a contactor work?
A contactor has an electromagnetic coil that creates a magnetic field when a current passes through it. This causes the armature of the contactor to move, which then either opens or closes its electrical contacts.
Specifications
| Attribute | Value |
| Coil Voltage | 100 ? 250 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 146 A |
| Power Rating | 75 kW |
| Normal State Configuration | 1NO + 1NC |
| Contact Voltage Rating | 400 V ac |
| Series | 100-E |
| Number Of Auxiliary Contacts | 2 |
| Function | Direct on Line |
| Terminal Type | Bar Connections |
| Width | 142.5mm |
| Depth | 150mm |
| Minimum Operating Temperature | -40°C |
| Mounting Style | Panel Mount |
| Maximum Operating Temperature | +70°C |
| Length | 90mm |
