    Allen Bradley 100 Series 100C Contactor, 230 V ac Coil, 3 Pole, 43 A, 22 kW, 3NO

    Allen Bradley 100 Series 100C Contactor, 230 V ac Coil, 3 Pole, 43 A, 22 kW, 3NO

    Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria.

    Description

    Allen Bradley 100-C AC Coil Operating Contactors


    Experience greater efficiency, reliability, and enhanced performance with the compact yet powerful 100-C series of contactors by Allen Bradley.

    These space-saving IEC contactors offer high switching power, ensuring application versatility and the ability to handle the high starting currents of modern motors and other loads. They have low power consumption and offer high connection reliability and ease-of-wiring due to having two separate power connections per pole, saving you valuable time and money. They are made of environmentally friendly materials and are RoHs compliant for added peace-of-mind.

    100-C series contactors have reversible coil terminals, offer front and side mounting of auxiliary contacts, and can be attached to a 35mm DIN Rail mount or panel mounted. Breadth of line is 9...97 A. These contactors provide IP2X finger protection to prevent risk of injury to operators and risk of damage to the device. They are compatible with electronic overload relays and bimetallic relays. This series also conveniently offers common accessories for all contactor sizes to give you a perfectly integrated system.

    Features:


    • Max Switching Voltage 690V (Rated Voltage) AC3
    • Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
    • Electrical Life: 1.3 Million Operations (400V)
    • 3 pole, 1 NO auxiliary contact on sizes 4 to 11kW

    Standards: IEC947, EN60 947, VDE0660, UL508, CSA22.2.

    Approvals: UL, CSA

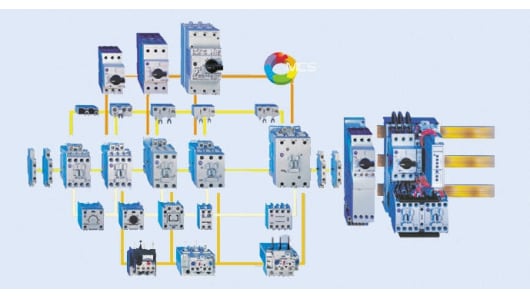

    Allen Bradley MCS (Modular Control System) Contactors:


    MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.


    MCS features:


    • A wide range of accessories available to cater for many diverse needs
    • The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
    • The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
    • A modular design concept and an easy to fit 'clip-in' method
    • Simple and fast DIN Rail and Surface Mounting

    Specifications

    Attribute Value
    Coil Voltage 230 V ac
    Number of Poles 3
    Contact Current Rating 43 A
    Power Rating 22 kW
    Normal State Configuration 3NO
    Contact Voltage Rating 690 V ac
    Series 100C
    Range 100 Series
    Terminal Type Screw
    Width 45mm
    Depth 86.5mm
    Length 81mm
    Maximum Operating Temperature +60°C
    Minimum Operating Temperature -25°C
