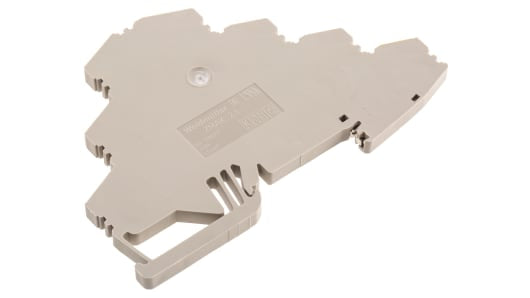

weidmuller 1768000000 ZMAK DIN Rail Terminal Block
Product Description
Motor Connection Terminal
The ZMAK 2.5 is a 4 tier DIN rail mounted terminal allowing the user to connect a 3 phase motor using one single 5mm wide terminal. The terminal consists of 3 levels of feed-through connections, and a fourth level allowing earth continuity to the rail
One of the smallest 3 phase connection terminals available
Replaces 4 standard terminals
Voltage Rating 500V
Current rating 30 A
Conductor Size 4mm2 (max)
Approvals
7777
Specifications
Product Description
The ZMAK 2.5 is a 4 tier DIN rail mounted terminal allowing the user to connect a 3 phase motor using one single 5mm wide terminal. The terminal consists of 3 levels of feed-through connections, and a fourth level allowing earth continuity to the rail
One of the smallest 3 phase connection terminals available
Replaces 4 standard terminals
Voltage Rating 500V
Current rating 30 A
Conductor Size 4mm2 (max)
Replaces 4 standard terminals
Voltage Rating 500V
Current rating 30 A
Conductor Size 4mm2 (max)
7777
Specifications
| Attribute | Value |
| Series | ZMAK |
