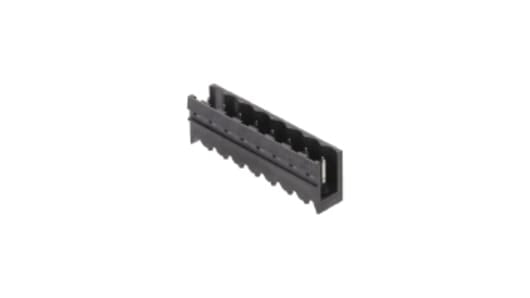

weidmuller 1838090000 SL 13-pin PCB Terminal Block, 5.08mm Pitch, Rows, Solder Termination
weidmuller 1838090000 SL 13-pin PCB Terminal Block, 5.08mm Pitch, Rows, Solder Termination Product Description High-temperature-resistant, 180°-angled male header, optimised for SMT processing. The male headers can be manually coded or ordered as pre-coded headers. Available in open, closed (G), with screw flange (F) or with solder Flange (LF).The solder flange...
weidmuller 1838090000 SL 13-pin PCB Terminal Block, 5.08mm Pitch, Rows, Solder Termination
Product Description
High-temperature-resistant, 180°-angled male header, optimised for SMT processing. The male headers can be manually coded or ordered as pre-coded headers.
Available in open, closed (G), with screw flange (F) or with solder Flange (LF).
The solder flange substitutes a screw fastening to the PCB and protects the solder joints aganist mechanical stress.
Available with 1.5 mm or 3.2 mm solder pins.
The short 1.5 mm pins enable a double-sided PCB mounting and reduce the needed amount of solder paste without losing holding force to the PCB.
Packed either in box (BX) or on anti-static roll (tape-on-reel, RL).
Specifications
Product Description
High-temperature-resistant, 180°-angled male header, optimised for SMT processing. The male headers can be manually coded or ordered as pre-coded headers.
Available in open, closed (G), with screw flange (F) or with solder Flange (LF).
The solder flange substitutes a screw fastening to the PCB and protects the solder joints aganist mechanical stress.
Available with 1.5 mm or 3.2 mm solder pins.
The short 1.5 mm pins enable a double-sided PCB mounting and reduce the needed amount of solder paste without losing holding force to the PCB.
Packed either in box (BX) or on anti-static roll (tape-on-reel, RL).
The solder flange substitutes a screw fastening to the PCB and protects the solder joints aganist mechanical stress.
Available with 1.5 mm or 3.2 mm solder pins.
The short 1.5 mm pins enable a double-sided PCB mounting and reduce the needed amount of solder paste without losing holding force to the PCB.
Packed either in box (BX) or on anti-static roll (tape-on-reel, RL).
Specifications
| Attribute | Value |
| Number of Contacts | 13 |
| Pitch | 5.08mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Solder |
| Type | PCB Terminal Block Header |
| Current Rating | 18.5A |
| Body Orientation | Straight |
| Colour | Black |
| Voltage Rating | 400 V, 300 (CSA, UL 1059) V |
| Series | SL |
| Width | 12mm |
| Material | CuMg (Contact), LCPGF (Insulation) |
| Length | 73.96mm |
| Depth | 8.5mm |
