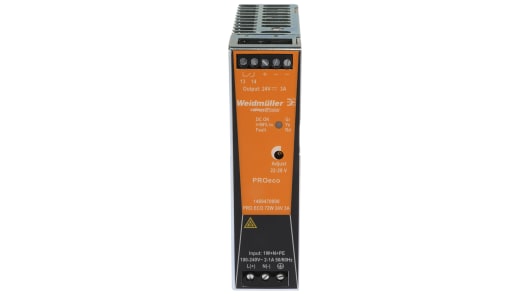

weidmuller 1469470000 PRO ECO Switch Mode DIN Rail Power Supply, 85 ? 264V ac ac, dc Input, 24V dc dc Output, 3A Output, 72W
weidmuller 1469470000 PRO ECO Switch Mode DIN Rail Power Supply, 85 ? 264V ac ac, dc Input, 24V dc dc Output, 3A Output, 72W Product Description Weidmuller DIN Rail Power Supply, 24V DC Output Voltage, 578g Weight - PRO ECO Series - 1469470000 Use this DIN rail power supply from...
weidmuller 1469470000 PRO ECO Switch Mode DIN Rail Power Supply, 85 ? 264V ac ac, dc Input, 24V dc dc Output, 3A Output, 72W
Product Description
Weidmuller DIN Rail Power Supply, 24V DC Output Voltage, 578g Weight - PRO ECO Series - 1469470000
Use this DIN rail power supply from Weidmuller to power your rail-mounted devices. By converting input signals into a steady 24V DC output, this device allows you to run low-voltage equipment. For versatility, it can receive inputs between 80 and 370V DC or 85 and 264V AC. Thanks to its built-in overload and reverse voltage protection, your devices are safeguarded against electrical damage in the event of a fault.
Features & Benefits
• Compact dimensions of 125 (H) x 34 (W) x 100mm (D) to maximise space on your DIN rail
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Light weight of 578g to place minimal strain on your equipment
Applications
• Power distribution
• Process control
• Factory automation
How much energy does this power supply consume?
For energy efficiency, this power supply consumes 0.55A at 230V AC and 1.04A at 110V AC, or 0.22A at 370V DC and 0.68A at 120V DC.
Specifications
Product Description
Use this DIN rail power supply from Weidmuller to power your rail-mounted devices. By converting input signals into a steady 24V DC output, this device allows you to run low-voltage equipment. For versatility, it can receive inputs between 80 and 370V DC or 85 and 264V AC. Thanks to its built-in overload and reverse voltage protection, your devices are safeguarded against electrical damage in the event of a fault.
• Compact dimensions of 125 (H) x 34 (W) x 100mm (D) to maximise space on your DIN rail
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Light weight of 578g to place minimal strain on your equipment
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Light weight of 578g to place minimal strain on your equipment
• Power distribution
• Process control
• Factory automation
• Process control
• Factory automation
For energy efficiency, this power supply consumes 0.55A at 230V AC and 1.04A at 110V AC, or 0.22A at 370V DC and 0.68A at 120V DC.
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 3A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 264V ac |
| Power Rating | 72W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switched Mode Power Supply |
| Width | 34mm |
| Height | 125mm |
| Series | PRO ECO |
| Depth | 100mm |
| Maximum Temperature | +70°C |
| MTBF | >500000h |
| Special Features | Compact Size, Easy to Maintain, Flexible, High Efficiency |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Minimum Temperature | -25°C |
| Efficiency | 87% |
| Ripple And Noise | <50mV |
