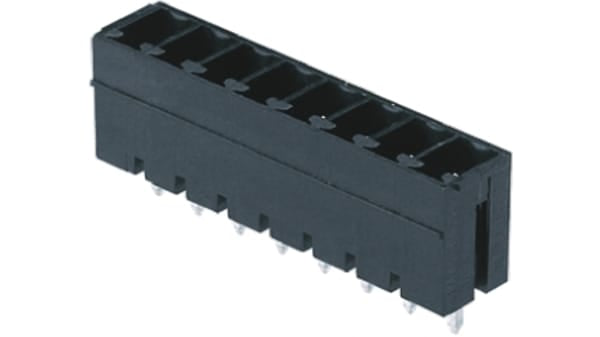

weidmuller SC 3.81/08/180G 3.2SN BK BX - 1793570000 OMNIMATE SC, 8 Way, 1 Row, Straight PCB Header
weidmuller SC 3.81/08/180G 3.2SN BK BX - 1793570000 OMNIMATE SC, 8 Way, 1 Row, Straight PCB Header Product Description SC Headers - 180° 3.2mm Pin Length These Weidmuller SC series of 180°, Through Hole Shrouded Headers have 3.2 mm solder pin lengths suitable for Wave soldering. Note For mating 3.81...
weidmuller SC 3.81/08/180G 3.2SN BK BX - 1793570000 OMNIMATE SC, 8 Way, 1 Row, Straight PCB Header
Product Description
SC Headers - 180° 3.2mm Pin Length
These Weidmuller SC series of 180°, Through Hole Shrouded Headers have 3.2 mm solder pin lengths suitable for Wave soldering.
Note
For mating 3.81 mm pitch BCZ plug Socket Connectors see stock number for 180° and for 90° typical.
3.81mm Pitch - Weidmuller Omnimate Range
Specifications
Product Description
These Weidmuller SC series of 180°, Through Hole Shrouded Headers have 3.2 mm solder pin lengths suitable for Wave soldering.
For mating 3.81 mm pitch BCZ plug Socket Connectors see stock number for 180° and for 90° typical.
3.81mm Pitch - Weidmuller Omnimate Range
Specifications
| Attribute | Value |
| Series | OMNIMATE SC |
| Pitch | 3.81mm |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Current Rating | 17.5A |
