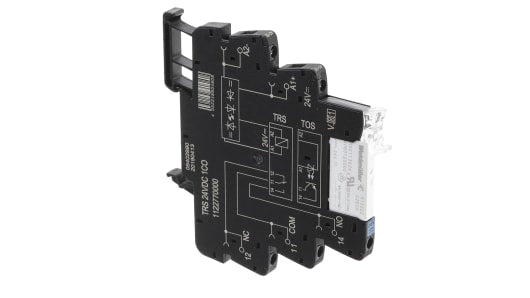

weidmuller 1122770000 DIN Rail Mount Interface Relay, 24V Coil, 6A Load Current, SPDT
Product Description
Weidmuller Interface Relay, 90mm Height, 6A Continuous Current Output - TERMSERIES Series - 1122770000
For reliable signalling in your automated system, choose this single-contact interface relay from Weidmuller. It's designed for use with components that have different electrical specifications that prevent them from being directly connected. Galvanic isolation inside the unit helps to minimise interference for efficient and stable transmission. The silver-nickel contact material is highly conductive and resistant to corrosion for a reliable connection.
Features & Benefits
• Protection against reverse polarity to minimise the risk of electrical damage
• Compact dimensions of 90 (H) x 6.4 (W) x 88mm (D) to add minimal bulk to your setup
• Light weight of 33g to avoid placing excess strain on your mounting surface
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
Applications
• Industrial automation and control networks
• Medical equipment
• Radio-electronic systems
What's the power rating of this unit?
The power rating of this unit is 240mW, making it an energy-efficient choice.
Can I use this relay in demanding conditions?
Yes, this interface relay has a wide operating temperature range between -40°C and +60°C for use in harsh environments.
Specifications
Product Description
For reliable signalling in your automated system, choose this single-contact interface relay from Weidmuller. It's designed for use with components that have different electrical specifications that prevent them from being directly connected. Galvanic isolation inside the unit helps to minimise interference for efficient and stable transmission. The silver-nickel contact material is highly conductive and resistant to corrosion for a reliable connection.
• Protection against reverse polarity to minimise the risk of electrical damage
• Compact dimensions of 90 (H) x 6.4 (W) x 88mm (D) to add minimal bulk to your setup
• Light weight of 33g to avoid placing excess strain on your mounting surface
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Compact dimensions of 90 (H) x 6.4 (W) x 88mm (D) to add minimal bulk to your setup
• Light weight of 33g to avoid placing excess strain on your mounting surface
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Industrial automation and control networks
• Medical equipment
• Radio-electronic systems
• Medical equipment
• Radio-electronic systems
The power rating of this unit is 240mW, making it an energy-efficient choice.
Yes, this interface relay has a wide operating temperature range between -40°C and +60°C for use in harsh environments.
Specifications
| Attribute | Value |
| Minimum Input Voltage | 5V |
| Coil Voltage | 24V |
| Maximum Input Voltage | 230V |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Load Current Rating | 6A |
| Load Voltage Rating | 250V ac |
| Terminal Type | Screw |
| Length | 90mm |
| Depth | 6.4mm |
| Series | TRS |
| Height | 88mm |
| Contact Material | Silver Alloy |
| Input Current | 10mA |
| Number of Poles | 1 |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
| Input Voltage Range | 5 ? 230V |
| Dimensions | 90 x 6.4 x 88mm |
| Relay Type | Electro Mechanical |
| Turn On Time | <6ms |
| Life | 5000000 Cycles |
| Turn Off Time | <7ms |
| Operating Temperature Range | -40 ? +60°C |
| Relay Switching Classification | General Purpose Relay |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Special Features | Protection Degree IP 20 |
