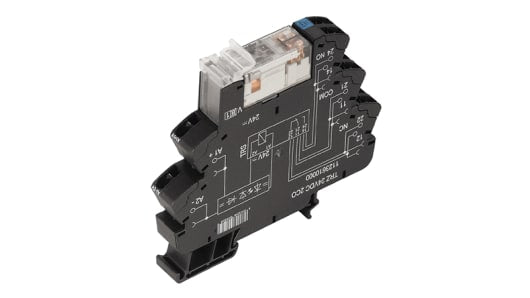

weidmuller 1123670000 DIN Rail Mount Interface Relay, 230V Coil, DPDT
Product Description
Weidmuller TERMSERIES Relay Modules
TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions:
With screw and tension-clamp connection
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
Product Description
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
Attribute | Value |
Minimum Input Voltage | 24V ac/dc |
Coil Voltage | 230V |
Maximum Input Voltage | 230V ac/dc |
Contact Configuration | DPDT |
Mounting Type | DIN Rail |
Switching Voltage | 250V ac/dc |
Terminal Type | Spring Clamp |
Length | 90mm |
Series | TRZ |
Depth | 12.8mm |
Height | 88mm |
Contact Material | Silver Alloy |
Input Current | (ac) 4 mA, (dc) 4mA |
Number of Poles | 2 |
Minimum Operating Temperature | -40°C |
Relay Switching Classification | General Purpose Relay |
Turn Off Time | <22ms |
Turn On Time | <14ms |
Input Voltage Range | 24 ? 230V ac/dc |
Standards Met | CE, CULus, EAC, RoHS Compliant |
Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
Operating Temperature Range | -40 ? +60°C |
Dimensions | 90 x 12.8 x 88mm |
Maximum Operating Temperature | +60°C |
