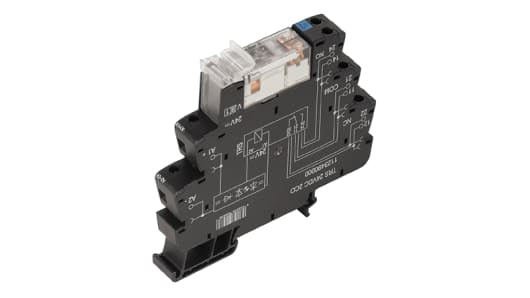

weidmuller 1123540000 DIN Rail Mount Interface Relay, 230V ac/dc Coil, DPDT
Product Description
Weidmuller TERMSERIES Relay Modules
TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions:
With screw and tension-clamp connection
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
Product Description
TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions:
With screw and tension-clamp connection
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
| Attribute | Value |
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 230V ac/dc |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Terminal Type | Screw |
| Length | 90mm |
| Series | TRS |
| Depth | 12.8mm |
| Height | 88mm |
| Contact Material | Silver Alloy |
| Input Current | (ac) 4 mA, (dc) 4mA |
| Number of Poles | 2 |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Operating Temperature Range | -40 ? +60°C |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Turn On Time | <14ms |
| Turn Off Time | <22ms |
| Relay Switching Classification | General Purpose Relay |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Dimensions | 90 x 12.8 x 88mm |
| Input Voltage Range | 230V ac/dc |
