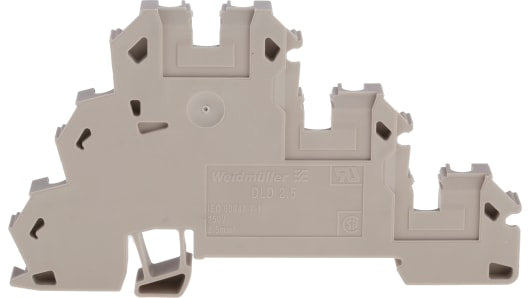

weidmuller 1784180000 Brown DLD Feed Through Terminal Block, Triple level, 2.5mm², 250 V
weidmuller 1784180000 Brown DLD Feed Through Terminal Block, Triple level, 2.5mm², 250 V Product Description Three Tier Terminals Three-tier tailored and compact terminals for application-optimised solution for signal wiring. The design of the terminal improves the overall layout of the rail when using sensors and save considerable space on the...
weidmuller 1784180000 Brown DLD Feed Through Terminal Block, Triple level, 2.5mm², 250 V
Product Description
Three Tier Terminals
Three-tier tailored and compact terminals for application-optimised solution for signal wiring. The design of the terminal improves the overall layout of the rail when using sensors and save considerable space on the rail.
Features and Benefits
• Screw connection technology
• AIO initiator/actuator terminals
• Suitable for mounting on symmetric rail only; to BS5584: 1978, EN 50022
Weidmuller Feed-Through Terminal Block, Screw Terminals, 24A Current Rating - DLD Series - 1784180000
Expand the connectivity of your control cabinet with this terminal block from Weidmuller. It comes with three levels of connections, so you can quickly loop three circuits into your system at once. Don't worry about struggling to wire your components, as this unit uses a feed-through method to make connections easy as can be. A current rating of 24A means this device keeps the power flowing to heavy-duty hardware. As it clamps your conductors using secure screw connections, you can trust the block cuts down on disruption from movement.
Features & Benefits
• Works with conductor sizes between 26 and 12AWG for versatility
• Clips onto DIN rails for simple, tool-free installation
• Broad operating temperature range between -50°C and +120°C means it can take the heat of harsh industrial settings
Applications
• Chemical processing
• Warehouses
• Aerospace industry
Do I need any other components to use this terminal block?
For best results, you should cover this product's open side with an end plate (748-1327) to help prevent dust and moisture from tampering with your wiring.
Approvals
7777
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
Three-tier tailored and compact terminals for application-optimised solution for signal wiring. The design of the terminal improves the overall layout of the rail when using sensors and save considerable space on the rail.
• Screw connection technology
• AIO initiator/actuator terminals
• Suitable for mounting on symmetric rail only; to BS5584: 1978, EN 50022
• AIO initiator/actuator terminals
• Suitable for mounting on symmetric rail only; to BS5584: 1978, EN 50022
Expand the connectivity of your control cabinet with this terminal block from Weidmuller. It comes with three levels of connections, so you can quickly loop three circuits into your system at once. Don't worry about struggling to wire your components, as this unit uses a feed-through method to make connections easy as can be. A current rating of 24A means this device keeps the power flowing to heavy-duty hardware. As it clamps your conductors using secure screw connections, you can trust the block cuts down on disruption from movement.
• Works with conductor sizes between 26 and 12AWG for versatility
• Clips onto DIN rails for simple, tool-free installation
• Broad operating temperature range between -50°C and +120°C means it can take the heat of harsh industrial settings
• Clips onto DIN rails for simple, tool-free installation
• Broad operating temperature range between -50°C and +120°C means it can take the heat of harsh industrial settings
• Chemical processing
• Warehouses
• Aerospace industry
• Warehouses
• Aerospace industry
For best results, you should cover this product's open side with an end plate (748-1327) to help prevent dust and moisture from tampering with your wiring.
7777
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Triple |
| American Wire Gauge | 26 ? 12AWG |
| Series | DLD |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Voltage Rating | 250 V |
| Current Rating | 24A |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +130°C |
