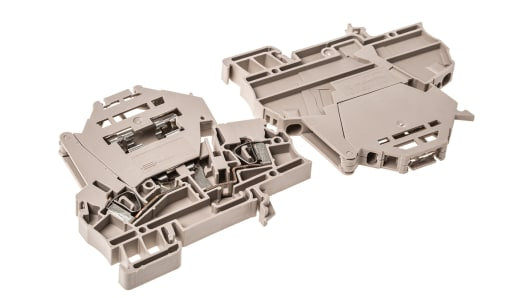

weidmuller 1616400000 Beige ZSI Fused DIN Rail Terminal, Single level, 2.5mm², 500 V
weidmuller 1616400000 Beige ZSI Fused DIN Rail Terminal, Single level, 2.5mm², 500 V Product Description Fuse Terminals Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For...
weidmuller 1616400000 Beige ZSI Fused DIN Rail Terminal, Single level, 2.5mm², 500 V
Product Description
Fuse Terminals
Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end protection, an end cover for the lower half of the terminal is required and a fuse plate, which flips up for easy access, is required for protection of the upper fuse carrier.
Note
The 1 1/4 x 1/4 terminal does not have ATEX Approval.
Approvals
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
Weidmuller Fused DIN Rail Terminal, Tension Clamp Connection, 26 to 12AWG Wire Size - Z Series - 1616400000
Double duty is a doddle for this fused DIN rail terminal from Weidmuller. The unit's tension clamp connection is designed to resist vibrations, so your wires will stay securely in place. At the same time, its built-in fuse gives your system extra protection against electrical hazards for increased safety. If you need to check or change the fuse, it's in a pivoting holder that flips up for quick access. This robust product has a wide operating temperature range between -50°C and +120°C, so it stands up to challenging settings.
Features & Benefits
• Compact size of 79.5 (H) x 7.9 (W) x 73mm (D) to save space
• Open side on the right enables easy access to wires
• Accommodates wire sizes between 26 and 12AWG for versatility
Applications
• Transport industry
• Lighting controllers
• Electrical engineering
How do I mount this terminal?
You can mount this terminal in a snap by simply clipping it onto a DIN rail.
What's this terminal made from?
This terminal is made from Wemid, which provides insulation and resistance to wear for long-lasting performance.
Approvals
1-7
Specifications
Product Description
Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end protection, an end cover for the lower half of the terminal is required and a fuse plate, which flips up for easy access, is required for protection of the upper fuse carrier.
The 1 1/4 x 1/4 terminal does not have ATEX Approval.
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
Double duty is a doddle for this fused DIN rail terminal from Weidmuller. The unit's tension clamp connection is designed to resist vibrations, so your wires will stay securely in place. At the same time, its built-in fuse gives your system extra protection against electrical hazards for increased safety. If you need to check or change the fuse, it's in a pivoting holder that flips up for quick access. This robust product has a wide operating temperature range between -50°C and +120°C, so it stands up to challenging settings.
• Compact size of 79.5 (H) x 7.9 (W) x 73mm (D) to save space
• Open side on the right enables easy access to wires
• Accommodates wire sizes between 26 and 12AWG for versatility
• Open side on the right enables easy access to wires
• Accommodates wire sizes between 26 and 12AWG for versatility
• Transport industry
• Lighting controllers
• Electrical engineering
• Lighting controllers
• Electrical engineering
You can mount this terminal in a snap by simply clipping it onto a DIN rail.
This terminal is made from Wemid, which provides insulation and resistance to wear for long-lasting performance.
1-7
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| Series | ZSI |
| American Wire Gauge | 26 ? 12AWG |
| Termination Method | Clamp |
| Cable CSA | 2.5mm² |
| Fused | Yes |
| Current Rating | 6.3A |
| Voltage Rating | 500 V |
| Pitch | 12mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Standards Met | CSA |
