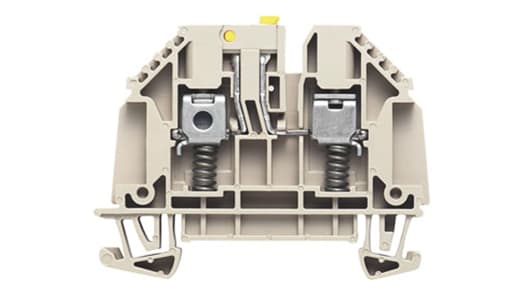

weidmuller 7910270000 Beige W Feed Through Terminal Block, Single level, 500 V
weidmuller 7910270000 Beige W Feed Through Terminal Block, Single level, 500 V Product Description WTR Feed-Through Terminals W-Series (WTR) test-disconnect terminal. Rated cross-section: 4 mm²Screw connection The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating...
weidmuller 7910270000 Beige W Feed Through Terminal Block, Single level, 500 V
Product Description
WTR Feed-Through Terminals
W-Series (WTR) test-disconnect terminal.
Rated cross-section: 4 mm²
Screw connection
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W-Series (WTR) test-disconnect terminal.
Rated cross-section: 4 mm²
Screw connection
Screw connection
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 26 ? 10AWG |
| Series | W |
| Termination Method | Screw |
| Voltage Rating | 500 V |
| Current Rating | 32A |
| Pitch | 6.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
