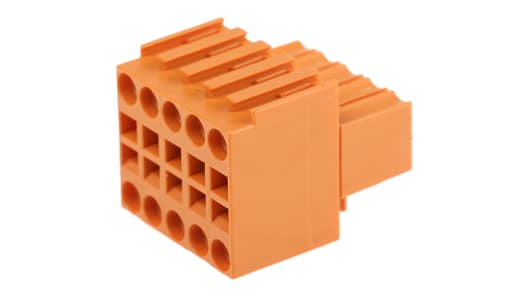

weidmuller B2L 3.50/10/180 SN OR BX - 1727580000 B2L 3.50 10-pin Pluggable Terminal Block, 3.5mm Pitch, 2 Rows, Screw Termination
weidmuller B2L 3.50/10/180 SN OR BX - 1727580000 B2L 3.50 10-pin Pluggable Terminal Block, 3.5mm Pitch, 2 Rows, Screw Termination Product Description Double Density 2-Part PCB Connector, screwless The weidmuller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors...
weidmuller B2L 3.50/10/180 SN OR BX - 1727580000 B2L 3.50 10-pin Pluggable Terminal Block, 3.5mm Pitch, 2 Rows, Screw Termination
Product Description
Double Density 2-Part PCB Connector, screwless
The weidmuller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors using 2.5mm or 2.54mm pitch
No special tooling required
Easy handling compared to 2.5 & 2.54 pitches
Highest available wiring density for single wires
3.5mm Pitch - weidmuller Omnimate Range
The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.
Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Specifications
Product Description
The weidmuller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors using 2.5mm or 2.54mm pitch
No special tooling required
Easy handling compared to 2.5 & 2.54 pitches
Highest available wiring density for single wires
Easy handling compared to 2.5 & 2.54 pitches
Highest available wiring density for single wires
3.5mm Pitch - weidmuller Omnimate Range
The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.
Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Specifications
| Attribute | Value |
| Number of Contacts | 10 |
| Pitch | 3.5mm |
| Number of Rows | 2 |
| Mounting Type | Cable Mount |
| Gender | Female |
| Termination Method | Screw |
| Type | Plug |
| Current Rating | 10.3A |
| Body Orientation | Straight |
| Colour | Orange |
| Voltage Rating | 200 V |
| Series | B2L 3.50 |
| Width | 15.7mm |
| Length | 17.5mm |
| Depth | 20.6mm |
| Material | PBT |
