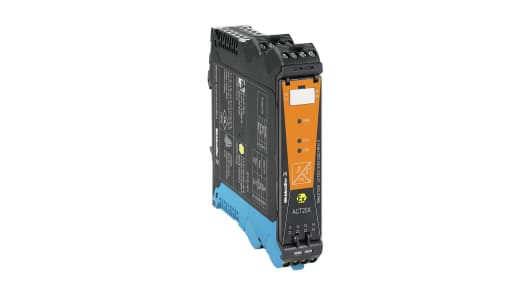

weidmuller 8965340000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, NAMUR Sensor, Switch Input, Relay Output, IECEx
weidmuller 8965340000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, NAMUR Sensor, Switch Input, Relay Output, IECEx Product Description ACT20X HDI-SDO-RNC/RNO-S/2HDI-2SDO-RNO-S Signal Isolating Converter The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/2HDI-2SDO-RNO-S isolating converters with amplifiers are specially designed for recording NAMUR sensor signals and digital switching signal which originate for Ex zone 0. With 11...
weidmuller 8965340000 ACT20X Series Signal Conditioner, 19.2 ? 31.2V, NAMUR Sensor, Switch Input, Relay Output, IECEx
Product Description
ACT20X HDI-SDO-RNC/RNO-S/2HDI-2SDO-RNO-S Signal Isolating Converter
The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/2HDI-2SDO-RNO-S isolating converters with amplifiers are specially designed for recording NAMUR sensor signals and digital switching signal which originate for Ex zone 0. With 11 mm width per channel, these isolating converters makes the ideal device to use in electrical cabinets as they require little space.
DIN Rail mounting
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
Specifications
Product Description
The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/2HDI-2SDO-RNO-S isolating converters with amplifiers are specially designed for recording NAMUR sensor signals and digital switching signal which originate for Ex zone 0. With 11 mm width per channel, these isolating converters makes the ideal device to use in electrical cabinets as they require little space.
DIN Rail mounting
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
Specifications
| Attribute | Value |
| Module Type | Isolation Amplifier |
| Input Signal Type | NAMUR Sensor, Switch |
| Output Signal Type | Relay |
| Supply Voltage | 19.2 ? 31.2V |
| Input Range | 8V dc |
| Output Range | 2A |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 ? +60°C |
| Termination | Screw |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Series | ACT20X |
