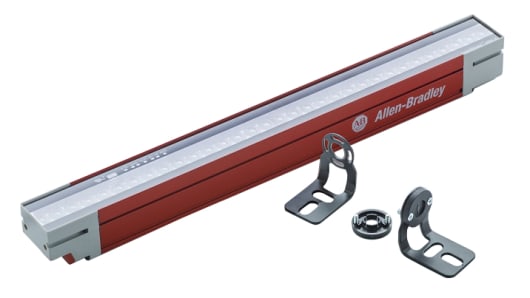

Allen-Bradley 450L-B4FN0300YD GuardShield 300mm- 14mm Transceiver
DescriptionAllen Bradley Guardmaster Light Curtain, Transceiver, 0.5 to 4m Scanning Range - 450L-B4FN0300YDPrevent accidents in your industrial environment using this light curtain from Rockwell Automation's Allen Bradley Guardmaster range. It projects a beam of light towards a compatible receiver in a hazardous area, which detects if a person is present...
Description
Allen Bradley Guardmaster Light Curtain, Transceiver, 0.5 to 4m Scanning Range - 450L-B4FN0300YD
Prevent accidents in your industrial environment using this light curtain from Rockwell Automation's Allen Bradley Guardmaster range. It projects a beam of light towards a compatible receiver in a hazardous area, which detects if a person is present and stops the machine from operating. Thanks to its patented technology, you can also use this transceiver as a receiver by simply inserting a plug-in module into it. This unit has a scanning range between 0.5 and 4m, which makes it a versatile choice.
• Beam resolution of 14mm to effectively detect items as small as a person's finger
• Two LED indicators for easy adjustment of alignment position
• IP65 rating indicates it's dust-tight and protected against low-pressure water jets
• Quick response time of less than 15ms for added safety
• Two LED indicators for easy adjustment of alignment position
• IP65 rating indicates it's dust-tight and protected against low-pressure water jets
• Quick response time of less than 15ms for added safety
Standards and Certifications
• TÜV certified Ple
• Type 4 IEC 61496-1/-2
• SILcl3 per EN ISO 13849-1
• IEC 62061
• Type 4 IEC 61496-1/-2
• SILcl3 per EN ISO 13849-1
• IEC 62061
450L-B Guard Shield 14mm (0.55 in.), 300 mm (11.82 in.)
How do I configure this light curtain?
This unit features a DIP switch on the plug-in module that lets you set various operating parameters ranging from the scanning range, start mode and protective height to the external device monitoring for ease of configuration.
Specifications
| Attribute | Value |
| Range | GuardShield |
| Series | 450L |
| Beam Resolution | 14mm |
| Component Type | Transceiver |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | e |
| Number of Beams | 16 |
| Protective Height | 300mm |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 4m |
| Maximum Response Time | <15 ms |
| Supply Voltage | 24 V dc |
| Height | 30mm |
| Length | 385mm |
| Terminal Type | Plug-In |
| Dimensions | 385 x 30 x 30 mm |
| Width | 30mm |
| Features | IEC 62061, IP65 Enclosure Rating TUV Certified PL e, Monitor & Troubleshoot via Connected Components Workbench Software, SIL cl3 per EN ISO 13849-1, Type 4 IEC 61496-1/-2 |
| Application | Mechanical Protective Devices |
