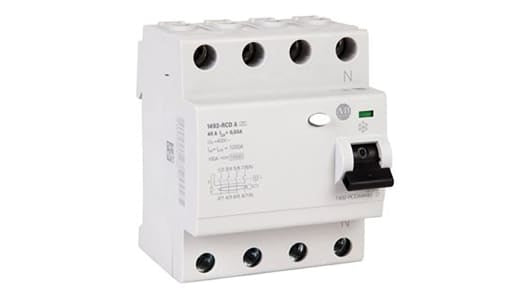

Allen-Bradley 1492-RCDA4C80 Residual Current Device 80 A
Description1492 SeriesAllen Bradley general purpose RCDs from the 1492 series. The RCDs have a Type A tripping characteristic and an instantaneous break time. 2 or 4 pole versions available. All the RCDs incorporate screw terminals and can be DIN Rail mounted.Features & Benefits2 or 4 pole versionsDIN Rail mountScrew TerminalsAllen...
Description
1492 Series
Allen Bradley general purpose RCDs from the 1492 series. The RCDs have a Type A tripping characteristic and an instantaneous break time. 2 or 4 pole versions available. All the RCDs incorporate screw terminals and can be DIN Rail mounted.
Features & Benefits
2 or 4 pole versions
DIN Rail mount
Screw Terminals
DIN Rail mount
Screw Terminals
Allen Bradley RCD, 1kA Breaking Capacity, DIN Rail Mounting - 1492-RCDA4C80
Need a comprehensive solution to tackle overloads, short-circuit faults and ground leaks? Choose this RCD from Rockwell Automation's Allen Bradley range. It detects small-to-moderate leakage currents and quickly diverts them to the earth to prevent electric shocks. As short-circuits often develop from leaking current, the product also effectively reduces this risk, to further improve user safety. A high impulse withstand rating of 4kV assures you this unit offers overload protection and will shield you reliably, even in case of significant voltage surges. For convenience, and to keep system downtime to a minimum, the RCD is easy to reset via a simple toggle switch on the front.
• Ambient temperature range of -25°C to +55°C for compatibility with harsh environments
• Simple push button makes device-testing easy
• Screw terminals achieve robust physical and electrical connections
• Mechanical endurance of 20,000 operations for longevity
• 4-pole configuration lets you protect up to 4 circuits
• Simple push button makes device-testing easy
• Screw terminals achieve robust physical and electrical connections
• Mechanical endurance of 20,000 operations for longevity
• 4-pole configuration lets you protect up to 4 circuits
Standards and Certifications
• CCC
• UL
• EN
• CE
• cURus
• UL
• EN
• CE
• cURus
How do I mount this component?
This RCD is easy to mount without tools as it simply clips onto a standard 35mm DIN rail.
Allen Bradley RCBs
Specifications
| Attribute | Value |
| Circuit Breaker Type | RCD |
| Current Rating | 80A |
| Number of Poles | 3P+N |
| Trip Sensitivity | 300mA |
| Tripping Characteristics | Type A |
| Series | 1492-RCDA |
| Rated AC Voltage | 230 V, 400V |
| Overall Depth | 75mm |
| Terminal Contact Type | Screw |
| Overall Length | 70mm |
| Overall Dimensions | 70 x 88 x 75mm |
| Reset Actuator Type | Toggle Switch |
| Overall Width | 88mm |
| Mounting Style | DIN Rail Mount |
