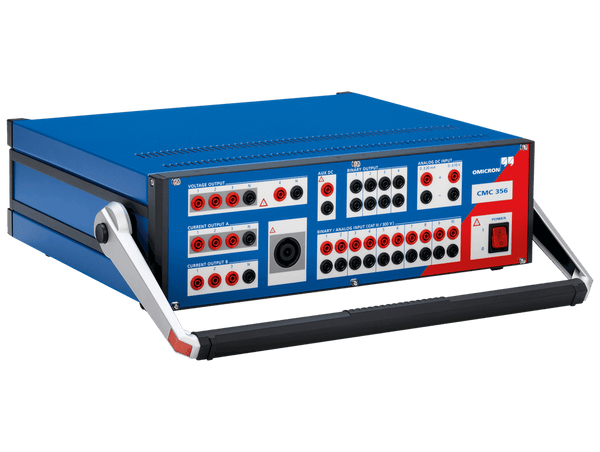

OMICRON CMC 356

The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands.

The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.

Key features

• Powerful current sources for testing even high-burden electromechanical relays
• High current amplitudes for 5 A relay testing
• High accuracy and versatility for testing static and numerical relays of all types
• Integrated network for testing IEC 61850 IEDs
• 10-channel analog measurement and transient recording functionality (option)

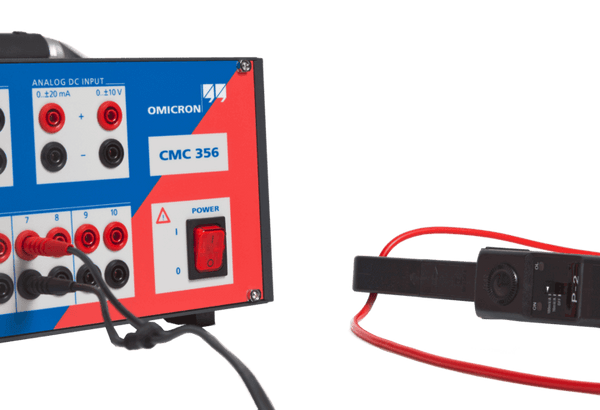

ELT-1 (EnerLyzer and Transducer) Hardware Option

This option

• turns the 10 binary inputs into multifunctional analog AC and DC measuring inputs. In connection with the EnerLyzer-SW-license, this function allows to use the CMC 356 as a 10 channel current and voltage transient recorder, measurement device for amplitude, phase, frequency, power (S, P, Q), harmonics, trend recorder etc.
• adds DC measuring inputs (0 ... 10 V / 0 ... 20 mA) to the CMC 356 test set. DC measuring inputs can be used for testing measurement transducers.
