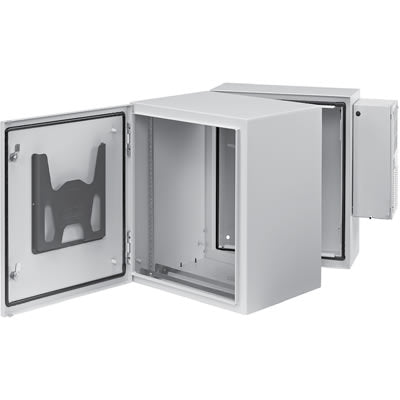

nVent HOFFMAN PTHS362428G4A Cabinet, NEMA 4, 12, Protek, SoLid Door, Wall Mount, 36.30x23.62x27.95

SKU: PTHS362428G4A
Brand: nVent HOFFMAN

Availability: In Stock

Description Features:Front and Rear Access to 19-In. Rack Equipment Provided by Three-Part Design: Door, Center Section and Wall Section Solid Door Provides Complete Physical and Visual Protection Window Door, Made of Scratch-Resistant Safety Glass, Provides Visual Monitoring and Physical Protection of Internal Equipment While Maintaining Equipment Protection All Seams Are...

Description

Features:

Front and Rear Access to 19-In. Rack Equipment Provided by Three-Part Design: Door, Center Section and Wall Section

Solid Door Provides Complete Physical and Visual Protection

Window Door, Made of Scratch-Resistant Safety Glass, Provides Visual Monitoring and Physical Protection of Internal Equipment While Maintaining Equipment Protection

All Seams Are Fully Welded and Ground Smooth

Doors, Center Section and Wall Section Are Provided with Ground Studs to Facilitate Proper Bonding and Grounding of the Cabinet

Premium Seamless, Foam-in-Place Gasket Prevents Contaminants From Entering the Cabinet

Keylocking Wing Knob Is Included on Painted Steel Cabinet, Providing Access Control to the Cabinet; Two Keys Are Included with Each Cabinet

Stainless Steel Cabinet Is Provided with a Quarter-Turn Slotted Latch

One Set of Plated, Self-Grounding, Tapped 10-32 Rack Angles Per EIA Universal Spacing Standards, Which Can Be Adjusted Front-to-Back, Is Provided with Each Center Section of the Cabinet; Additional Tapped- or Square-Hole Rack Angles Can Be Added to the Cabinet to Provide Additional Mounting

On 28-In. (700 mm) Wide Enclosures, a 4-In. Vertical Cable Manager Is Provided on Hinge Side of Cabinet
Specifications:

Doors Made of 16-Gauge; Center and Wall Sections Made of 14-Gauge Steel. Stainless Steel Enclosures Made from Type 304 Stainless Steel

Window Made of 0.25-In. Thick, Scratch- and Impact-Resistant Safety Glass

Rack Angles Made of Plated 12 Gauge Steel

M6 Ground Studs on Door, Center and Wall Sections Are Masked from Paint

Twenty 10-32 Screws Included with Cabinet

Foam-In-Place Gasket Made of Durable Polyurethane
Finish:

Pretreated Steel Coated with RAL 7035 Light-Gray, Low-Gloss, Lightly Textured Polyester Powder Paint

Stainless Steel Is Provided with a Smooth-Grain Finish
Industry Standards:

UL 508A Listed; File No. E61997

cUL Listed per CSA C22.2 No. 94; File Number E619967

Solid Door: Type 4 and 12
