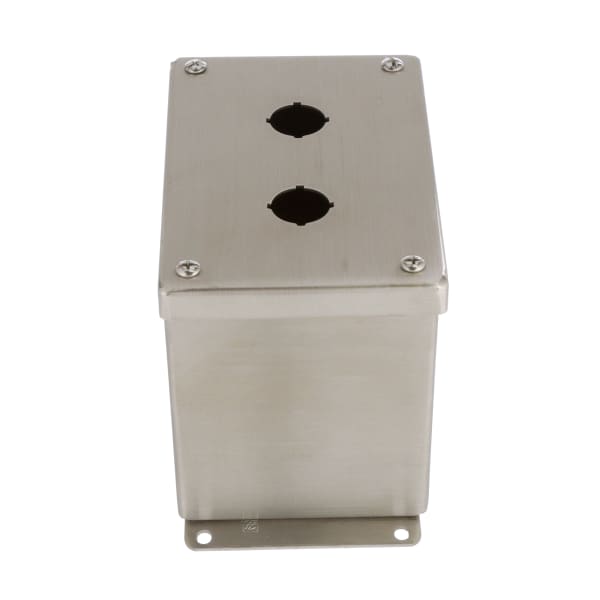

nVent HOFFMAN E2PBGXSS Enclosure,Pushbutton,2 Hole,22.5mm,Stainless,NEMA13,IP66,Pentair Stainless Serie

SKU: E2PBGXSS
Brand: nVent HOFFMAN

Availability: In Stock

Description Applications:Punched specifically to house either 30.5 mm or 22.5 mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water.Specifications:14-Gauge Bodies, 16-Gauge Covers; Type 304 or Type 316 Stainless Steel Seams Continuously Welded and Ground Smooth Captivated Cover Screws Thread into Sealed Wells Bonding...

Description

Applications:
Punched specifically to house either 30.5 mm or 22.5 mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water.

Specifications:

14-Gauge Bodies, 16-Gauge Covers; Type 304 or Type 316 Stainless Steel

Seams Continuously Welded and Ground Smooth

Captivated Cover Screws Thread into Sealed Wells

Bonding Provisions on Door; Grounding Nut on Body

Four-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights

Enclosures with More Than One Column of Pushbutton Holes Have Internal Detachable Hinge to Hold Cover Open During Wiring, Yet Permit Immediate Removal

Oil-Resistant Gasket

Finish:
Cover and sides of body have smooth #4 brushed finish.

Industry Standards:

UL 508A Listed; Type 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File Number E61997

NEMA/EEMAC Type 4X, 12, 13

CSA File No. 42186; Type 4, 4X, 12

IEC 60529, IP66
