APPLICATION

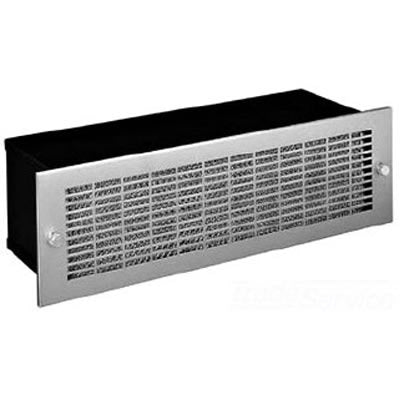

For enclosure or 19-in. rack applications, the Blower Fan Package provides the maximum amount of cooling air in the least amount of space by utilizing 115 volt AC, 60/50 hertz, single-phase input power. Engineered for 20,000 hours of continuous operation when properly powered.

FEATURES
• Intake grille is easily removed with two captive thumbnuts
• Washable aluminum filter
• Single phase motor powers the statically balanced blower
• Motor is thermally protected and cooled by incoming forced air
• Direct drive induction motor contains permanently lubricated ball bearings
• Lubricant protects from -20 F to 298 F (-29 C to 148 C)
• Rotating components are suspended on neoprene shock-mounts
• Three-conductor power cord (five feet long)
• The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
• An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately

SPECIFICATIONS
• 16 gauge steel housing

FINISH
• Blower housing is black enamel.
• Grille is brushed stainless steel.
