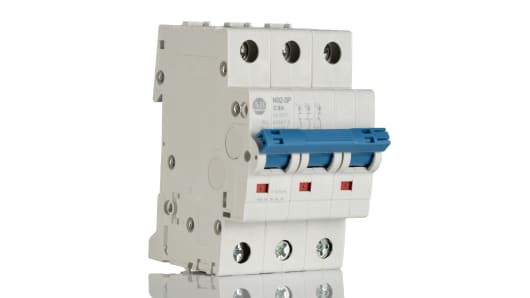

Allen-Bradley 1492-SPM3C080 MCB Supplementary Protector 8 A

  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley MCB, 1.5W Power Loss Per Pole, 3 Poles - 1492-SPM3C080


    Protect your industrial hardware against short circuits with this MCB from Rockwell Automation's Allen Bradley range. Its type C tripping characteristic means it trips when it receives current at a level between 5 and 10 times its 8A rating, giving you effective overcurrent protection. The device breaks attached circuits instantly, so you can be sure of effective protection, but is designed to resist vibration, meaning nuisance trips are minimised. As this unit has 3 protective poles, it's a versatile option that's suitable for single and 3-phase supplies.

    • Service life of up to 20,000 cycles for long-lasting protection
    • Convenient front-mounted toggle switch for easy resetting
    • IP20 rating indicates resistance to solid objects over 12mm in size, including fingers
    • Compact dimensions of 53 (W) x 88 (H) x 75mm (D) for easy mounting in small enclosures
    • Mounts to a DIN rail for quick installation

    Standards and Certifications


    • CE
    • EN 60947-2
    • UL

    What's the maximum breaking capacity of this MCB?


    This MCB has a 10kA breaking capacity to ensure your system is protected against sudden electrical surges.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 3P
    Current Rating 8A
    Tripping Characteristics Type C
    Rated AC Voltage 277 V, 480V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 53mm
    Depth 88mm
    Break Time Instantaneous
    Reset Actuator Type Toggle Switch
    Application General Purpose
    Tripping Mechanism Thermal-Magnetic
    Terminal Contact Type Screw
