Allen-Bradley 1492-SPM3C060 MCB Supplementary Protector 6 A

  • ₦0.00
  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

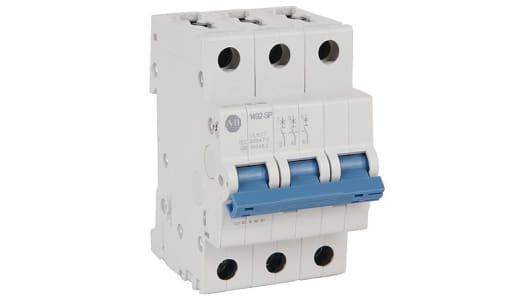

    Allen Bradley Miniature Circuit Breaker, Type C, 6A Current Rating - 1492-SPM3C060


    Protect your electrical devices from overloads with this miniature circuit breaker from Rockwell Automation's Allen Bradley range. In the event of an electrical surge, the MCB's bi-metal strip heats up and bends, breaking the circuit and immediately halting the flow of electricity to downstream devices. A Type C curve means it trips at five to ten times the 6A current rating and is suited for use with domestic appliances with highly inductive electric motors. The unit has an operating range of -40°C +70°C to handle industrial environments prone to both cold and hot temperatures.

    Features & Benefits


    • Long-lasting device with a lifespan of approximately 20,000 mechanical operations
    • Clips securely onto a DIN rail for fast and easy installation
    • Screw terminals help protect the device from nuisance tripping due to impact trauma or vibration
    • Indicator window appears red when closed and green when open for easy status checking

    Standards and Certifications


    • CSA (Canadian Standards Association)
    • VDE (Verband der Elektrotechnik)
    • UL (Underwriters' Laboratories)
    • CE (Conformitè Europëenne)

    Does this miniature circuit breaker have any special installation features?


    Yes, this miniature circuit breaker has dual-purpose wire terminals for flexibility in how you connect the unit.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 3P
    Current Rating 6A
    Tripping Characteristics Type C
    Rated AC Voltage 277 V, 480V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 53mm
    Depth 88mm
    Application General Purpose
    Break Time Instantaneous
    Reset Actuator Type Toggle Switch
    Terminal Contact Type Screw
    Tripping Mechanism Thermal-Magnetic
