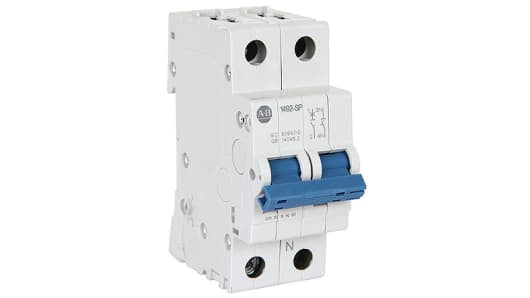

Allen-Bradley 1492-SPM2C630 MCB Supplementary Protector 63 A

  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley MCB, 63A Maximum Current Rating, Type C Tripping - 1492-SPM2C630


    Keep your industrial system safe from hazards by using this MCB from Rockwell Automation's Allen Bradley range. When it senses excess current, it quickly cuts off the power supply to the circuit, preventing damage to downstream equipment. Thanks to its type C characteristic, this unit trips at between 5 and 10 times its rated current. To reset it, simply flip the built-in toggle switch on the front. You can mount this MCB by snapping it onto a DIN rail, eliminating the need for complex tools.

    • High maximum current rating of 63A to withstand heavy-duty equipment
    • Resistant to shock and vibration to prevent false tripping
    • IP20 rating indicates it's protected from objects more than 12mm in size
    • Broad operating temperature range between -25°C and +55°C to withstand harsh environments
    • Mountable in any position for flexible assembly

    Standards and Certifications


    • VDE Certified
    • UL Recognised
    • CSA C22.2 No. 235
    • EN 60947-2
    • CCC Certified

    How durable is this MCB?


    This MCB has a mechanical endurance rating of 20,000 operations, so you can be certain of its long service.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 2P
    Current Rating 63A
    Tripping Characteristics Type C
    Rated AC Voltage 277 V, 480V
    Rated DC Voltage 96V
    Range 1492
    Series 1492SPM
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 35mm
    Depth 88mm
    Terminal Contact Type Screw
    Application General Purpose
    Reset Actuator Type Toggle Switch
    Break Time Instantaneous
    Tripping Mechanism Thermal-Magnetic
