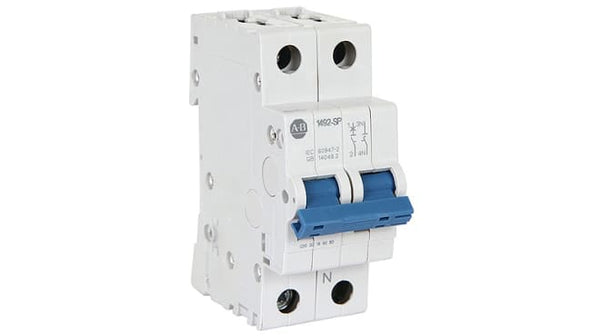

Allen-Bradley 1492-SPM2C320 MCB Supplementary Protector 32 A

SKU: 1492-SPM2C320
Brand: rockwell automations

Availability: In Stock

DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...

Description

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C

Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

Features and Benefits:

• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Miniature Circuit Breaker, Type C, 32A Current Rating - 1492-SPM2C320

To prevent short-circuit damage, wire your electrical equipment to this miniature circuit breaker from Rockwell Automation's Allen Bradley range. It's a 2-pole device that can supply switching for two channels or AC (alternating current) circuits. The type C unit breaks the circuit when the current reaches five to ten times its rated load of 32A, so you can use it with high inductive loads such as washing machines or electric motor fans. The back of the device features a clip that secures to a DIN rail, so installation is quick to carry out.

Features & Benefits

• IP20 (ingress protection) rating certifies the switch shields operators from electric shocks
• Indicator window shows red when closed and green when open to make the contact status easy to make out
• Mechanical endurance for around 20,000 operations for long-lasting use
• Thermal-magnetic tripping mechanism provides an instantaneous break time for reliable circuit protection

Standards and Certifications

• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• CSA (Canadian Standards Association)
• VDE (Verband der Elektrotechnik)

Does this miniature circuit breaker withstand industrial environments?

This miniature circuit breaker is secured with screws to protect it from impact trauma, industrial vibration and nuisance tripping.

Allen Bradley MCBs

Specifications

Attribute	Value
Number of Poles	2P
Current Rating	32A
Tripping Characteristics	Type C
Rated AC Voltage	277 V, 480V
Rated DC Voltage	96V
Series	1492SPM
Range	1492
Breaking Capacity at Maximum Voltage Rating	10 kA
Circuit Breaker Type	MCB
Mounting Style	DIN Rail Mount
Width	75mm
Length	35mm
Depth	88mm
Reset Actuator Type	Toggle Switch
Application	General Purpose
Break Time	Instantaneous
Tripping Mechanism	Thermal-Magnetic
Terminal Contact Type	Screw
