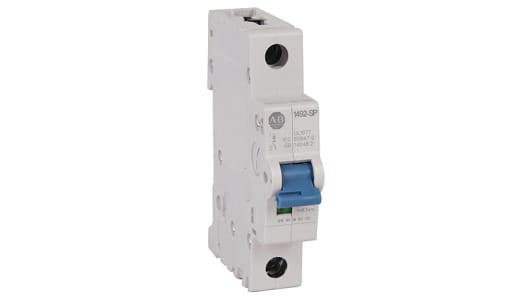

Allen-Bradley 1492-SPM1D060 MCB Supplementary Protector 6 A

  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type DSafeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.These MCB’s have instantaneous breaking time and feature type D tripping. They...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D


    Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

    These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

    Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

    Features and Benefits:


    • Instantaneous break time
    • Can be DIN rail mounted for fast and simple installation
    • Available in 1, 2 or 3 pole versions to meet your requirements
    • Clear visibility of contact state due to indicator window: red for closed, green for open
    • Thermal-magnetic tripping mechanism
    • Screw Terminals
    • Environmentally friendly - RohS compliant and fully recyclable
    • Usable even in extreme ambient conditions due to 40 ?C (104 °F) calibration temperature

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 6A Current Rating - 1492-SPM1D060


    Protect your electrical equipment from current overload using this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. It has dual connection terminals so you can set it up with wires or bus bars, making it a versatile choice. A toggle switch lets you easily reset it to its original state. As it's a type D MCB, it'll trip when it receives between 10 and 20 times its recommended current rating. This makes it suitable for powerful industrial applications like large motors and power generating systems.

    • Mechanical service life of 20,000 operations for durability
    • DIN rail mounting for time-saving installation
    • Broad operating temperature range of -25°C to +55°C for use in demanding environments
    • IP20 (ingress protection) rating indicates it's touch-proof to prevent risk of electric shocks

    Standards and Certifications


    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Association)
    • CE (Conformitè Europëenne)
    • CCC (China Compulsory Certificate)
    • VDE (Verband Deutscher Elektrotechniker)
    • RoHS (Restriction of Hazardous Substances)

    How can I tell if this MCB is active?


    The unit has an indicator window that shows its contact state in two colours – red stands for ON and green stands for OFF. This lets you know the operating status of the device at a glance, for easy diagnosis.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 1P
    Current Rating 6A
    Tripping Characteristics Type D
    Rated AC Voltage 277V
    Rated DC Voltage 48V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 74mm
    Length 17.5mm
    Depth 88mm
    Tripping Mechanism Thermal-Magnetic
    Application General Purpose
    Terminal Contact Type Screw
    Reset Actuator Type Toggle Switch
    Break Time Instantaneous
