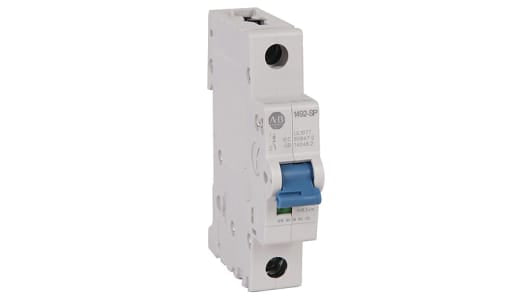

Allen-Bradley 1492-SPM1C630 MCB Supplementary Protector 63 A

SKU: 1492-SPM1C630
Brand: rockwell automations

Availability: In Stock

DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...

Description

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C

Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

Features and Benefits:

• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley MCB, DIN Rail Mount, Type C Tripping - 1492-SPM1C630

Looking for a reliable safety solution for your high-power electric equipment? Turn to this general-purpose MCB from Rockwell Automation's Allen Bradley range. As soon as the power level exceeds the component's rated current of 63A, an internal bimetallic strip on the MCB will heat up and bend, breaking the circuit instantly. This helps to protect your attached devices from electrical hazards and the risk of fire. For quick resetting after a trip, the unit has an integrated toggle switch.

• Breaking capacity of 10kA to withstand powerful current surges
• Mechanical endurance of 20,000 cycles for durable performance
• DIN rail mounting offers quick, tool-free connection
• Wide operating temperature range between -25°C and +55°C makes it suitable for demanding settings
• IP20 rating indicates it's protected from objects over 12mm in size

Standards and Certifications

• CCC-certified
• VDE-certified
• UL 1077
• CSA C22.2 no. 235
• EN 60947-2

How do I monitor the contact state of this MCB?

This MCB features a built-in indicator window for monitoring status, which turns red when it's on and green when it's off.

Allen Bradley MCBs

Specifications

Attribute	Value
Number of Poles	1P
Current Rating	63A
Tripping Characteristics	Type C
Rated AC Voltage	277V
Rated DC Voltage	48V
Range	1492
Series	1492SPM
Breaking Capacity at Maximum Voltage Rating	10 kA
Circuit Breaker Type	MCB
Mounting Style	DIN Rail Mount
Width	74mm
Length	17.5mm
Depth	88mm
Terminal Contact Type	Screw
Application	General Purpose
Break Time	Instantaneous
Reset Actuator Type	Toggle Switch
Tripping Mechanism	Thermal-Magnetic
