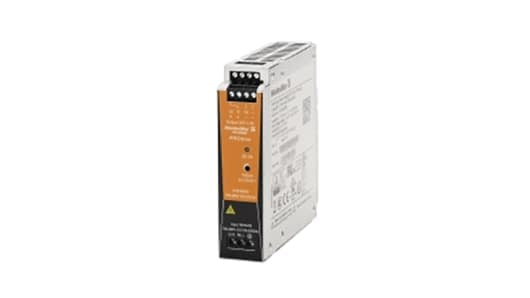

weidmuller 1478210000 PRO MAX DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 5V dc dc Output, 14A Output, 70W
weidmuller 1478210000 PRO MAX DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 5V dc dc Output, 14A Output, 70W Product Description PROmax Series Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies...
weidmuller 1478210000 PRO MAX DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 5V dc dc Output, 14A Output, 70W
Product Description
PROmax Series
Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.
Reliable
Efficient
Robust
Switch Mode - Weidmuller
Specifications
Product Description
Efficient
Robust
Specifications
Attribute | Value |
Output Voltage | 5V dc |
Output Current | 14A |
AC or DC Input Voltage | ac, dc |
AC or DC Output Voltage | dc |
Input Voltage | 85 ? 277V ac |
Power Rating | 70W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Mounting Type | DIN Rail Mount |
Height | 130mm |
Series | PRO MAX |
Depth | 125mm |
Ripple And Noise | <50mV |
Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
Special Features | Durable, High Performance |
MTBF | >500000h |
Minimum Temperature | -25°C |
Maximum Temperature | +70°C |
