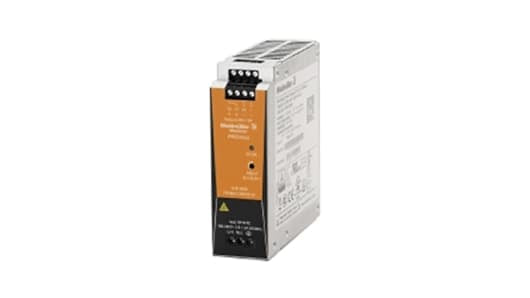

weidmuller 1478230000 PRO MAX DIN Rail Power Supply, 85 ? 277V ac ac, dc Input, 12V dc dc Output, 10A Output, 120W
Product Description
PROmax Series
Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.
Reliable
Efficient
Robust
Switch Mode - Weidmuller
Specifications
Product Description
Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.
Reliable
Efficient
Robust
Efficient
Robust
Switch Mode - Weidmuller
Specifications
| Attribute | Value |
| Output Voltage | 12V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 ? 277V ac |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Height | 130mm |
| Series | PRO MAX |
| Depth | 125mm |
| Special Features | Durable, High Performance |
| MTBF | >500000h |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Ripple And Noise | <50mV |
