weidmuller 1469530000 PRO ECO Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 5A Output,
weidmuller 1469530000 PRO ECO Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 5A Output, Product Description Weidmuller DIN Rail Power Supply, Screw Connection, 24V DC Output Voltage - PRO ECO Series - 1469530000 Provide power to units like control cabinets and...
weidmuller 1469530000 PRO ECO Switch Mode DIN Rail Power Supply, 320 ? 575V ac ac, dc Input, 24V dc dc Output, 5A Output,
Product Description

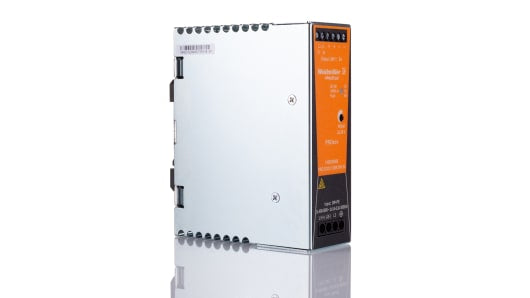

Weidmuller DIN Rail Power Supply, Screw Connection, 24V DC Output Voltage - PRO ECO Series - 1469530000
Provide power to units like control cabinets and circuit breakers on the same rail using this DIN rail power supply from Weidmuller. It converts an input voltage between 320 and 575V DC to a steady 24V DC output. The 87% efficiency rating means there's minimal energy loss during switching. As this device offers short circuit and overload protection, you can rest assured that it will help prevent damage to your equipment in the event of a fault.
Features & Benefits
• MTBF of over 500,000 hours for long-lasting performance
• 3-phase electrical power system enables a consistent supply
• Low ripple of 50mV for enhanced efficiency
• Wide operating temperature range of -25°C to +70°C for use in demanding environments
Applications
• Marine industry
• Robotics and automation
• Industrial control cabinets
• Computer networks
What's a DIN rail?
A DIN rail is a metal strip you can use to mount electrical equipment. It comes in standard sizes for broad compatibility with different types of equipment. You'll often find these components in control cabinets and panels.
Specifications
Product Description
Provide power to units like control cabinets and circuit breakers on the same rail using this DIN rail power supply from Weidmuller. It converts an input voltage between 320 and 575V DC to a steady 24V DC output. The 87% efficiency rating means there's minimal energy loss during switching. As this device offers short circuit and overload protection, you can rest assured that it will help prevent damage to your equipment in the event of a fault.
• MTBF of over 500,000 hours for long-lasting performance
• 3-phase electrical power system enables a consistent supply
• Low ripple of 50mV for enhanced efficiency
• Wide operating temperature range of -25°C to +70°C for use in demanding environments
• 3-phase electrical power system enables a consistent supply
• Low ripple of 50mV for enhanced efficiency
• Wide operating temperature range of -25°C to +70°C for use in demanding environments
• Marine industry
• Robotics and automation
• Industrial control cabinets
• Computer networks
• Robotics and automation
• Industrial control cabinets
• Computer networks
A DIN rail is a metal strip you can use to mount electrical equipment. It comes in standard sizes for broad compatibility with different types of equipment. You'll often find these components in control cabinets and panels.
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 320 ? 575V ac |
| Power Rating | 120W |
| Electrical Phase | 3 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Type | Switched Mode Power Supply |
| Width | 40mm |
| Height | 125mm |
| Series | PRO ECO |
| Depth | 100mm |
| Minimum Temperature | -25°C |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Maximum Temperature | +70°C |
| Special Features | Compact Size, Easy to Maintain, Flexible, High Efficiency |
| MTBF | >500000h |
| Ripple And Noise | <50mV |
| Efficiency | 87% |
