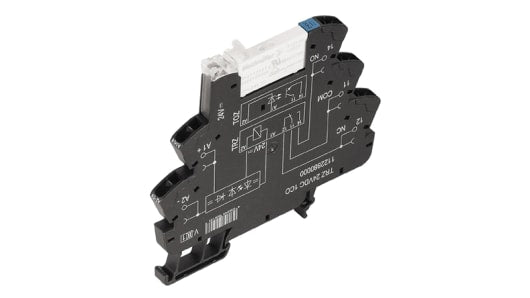

weidmuller 1122920000 DIN Rail Mount Interface Relay, 110V Coil, SPDT
weidmuller 1122920000 DIN Rail Mount Interface Relay, 110V Coil, SPDT Product Description Weidmuller TERMSERIES Relay Modules TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions: With screw and tension-clamp connectionAgNi contact, optionally with hard gold-plated contacts1 and 2 COsOptionally with multiple-voltage input:...
weidmuller 1122920000 DIN Rail Mount Interface Relay, 110V Coil, SPDT
Product Description
Weidmuller TERMSERIES Relay Modules
TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions:
With screw and tension-clamp connection
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
Product Description
TERMSERIES complete relays modules consisting of a relay and base with AC/DC/UC coils, available in different versions:
With screw and tension-clamp connection
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
AgNi contact, optionally with hard gold-plated contacts
1 and 2 COs
Optionally with multiple-voltage input: 24...230 V UC
With various protective circuits in the input (free-wheel diode, RC element)
Illuminated ejection lever
Specifications
| Attribute | Value |
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 110V |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Terminal Type | Spring Clamp |
| Length | 90mm |
| Depth | 6.4mm |
| Series | TRZ |
| Height | 88mm |
| Contact Material | Silver Alloy |
| Input Current | (dc) 3.5 mA, (ac) 4mA |
| Number of Poles | 1 |
| Turn On Time | <8ms |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Dimensions | 90 x 6.4 x 88mm |
| Input Voltage Range | 24 ? 230V ac/dc |
| Turn Off Time | <7ms |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Relay Switching Classification | General Purpose Relay |
| Operating Temperature Range | -40 ? +60°C |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
